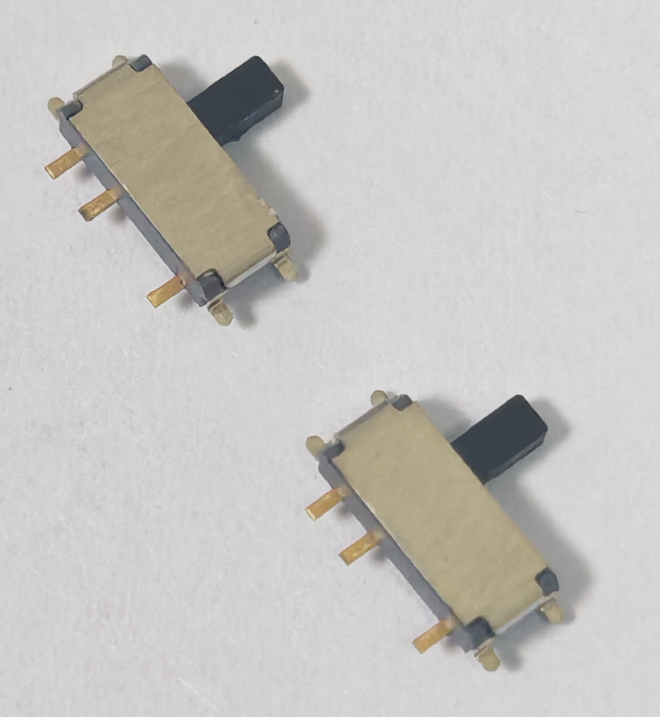

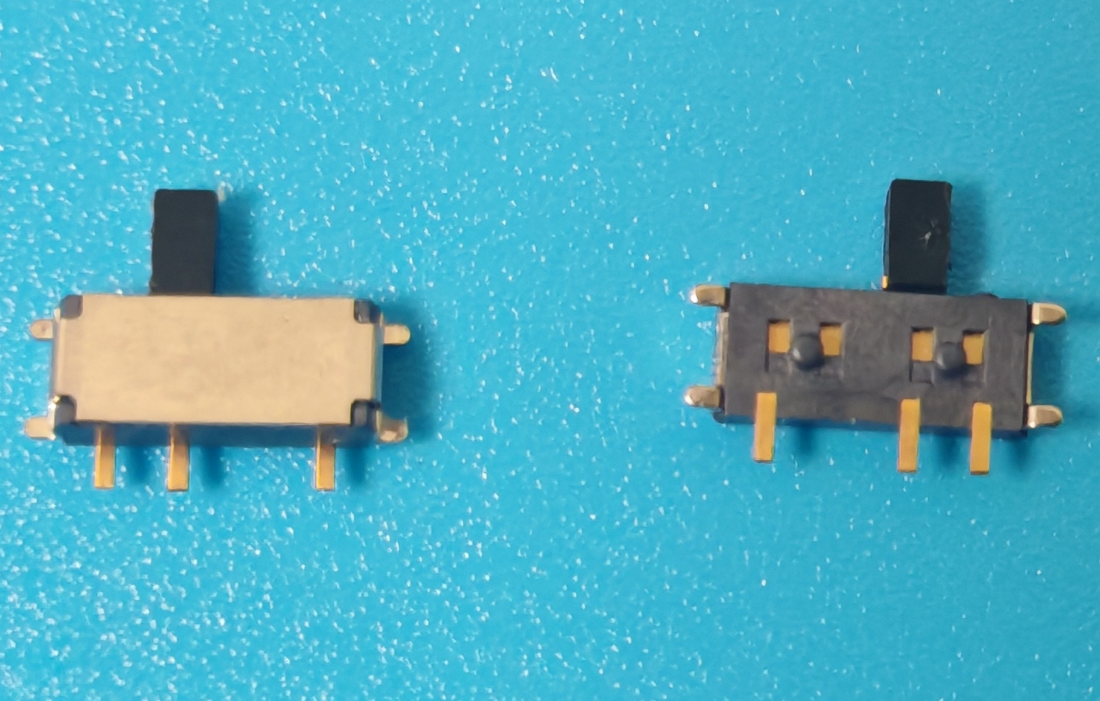

Alinta 7-feet Slide Switch (toggle Switch) SMT Type Operation Force 160gf Life Cycle 5000 Times

Name: Alinta 7feet Slide Switch toggle Switch SMT Type Operation Force 160gf Life Cycle 5000 Times
Brand: Alinta
Price: 1 USD

China Alinta 7-feet Slide Switch (toggle Switch) SMT Type Operation Force 160gf Life Cycle 5000 Times wholesale

Brand Name : Alinta

Model Number : QC-AY07AG485-R

Certification : RoHS,REACH

Place of Origin : CN

MOQ : 1000

Price : Negotiable

Payment Terms : T/T

Supply Ability : 25KK per month

Delivery Time : 5-8 days

Packaging Details : Tape & Reel

Termination Type : SMT, 7-feet

Operation Force : 200gf±50gf

Life Cycle : 10000

Travel : 1.5mm

Contact Now

Product Type: QC-AY07AG485-R

Alinta 7-feet Slide Switch (toggle Switch) SMT Type Operation Force 160gf Life Cycle 5000 Times

Parameter

Current/Voltage Rating	DC 12V 100mA
Insulation Resistance	>100MΩ
Contact Resistance	<100mΩ
Life Cycle	5000
Withstand Voltage	250V AC Min
Operating Temperature	-20 to 85°C
Operation Force	160gf±50gf
Solderability	255°C Max Solder Temperature

/Material

Button	PA46 Black
Cover	SUS
Shrapnel	Beryllium Bronze, AG plating
Terminal	Brass, Au 3" plating
Housing	PA6T Black

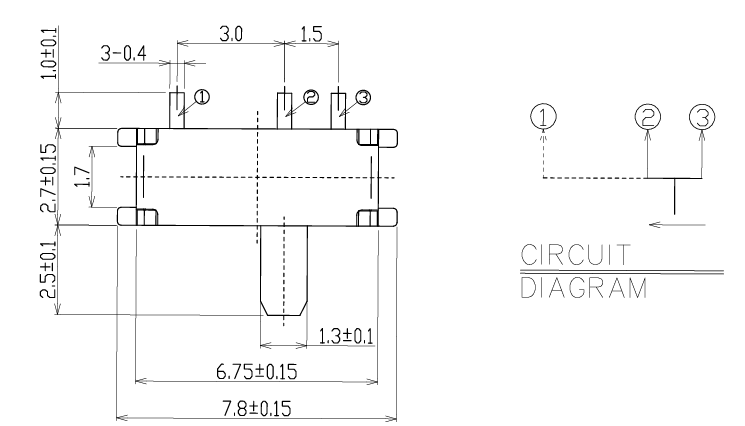

/DIMENSION/SCHEMATIC

Alinta 7-feet Slide Switch (toggle Switch) SMT Type Operation Force 160gf Life Cycle 5000 Times

/Market/Application

Audio/TV, Mobile, Healthcare, Home Appliance, Smart Meter, Energy/Industrial Equipments

/Production Overview

CCD Inspection Equipment

--------------------------------------------------------

ALINTA Factory boasts a fully automated production line for sliding switches and advanced inspection equipment, supported by a rigorous management system and professional personnel, ensuring that every product delivered to our customers is safe and reliable.

Welcome to contact us for any product inquiries and welcome to visit our factory in China.
