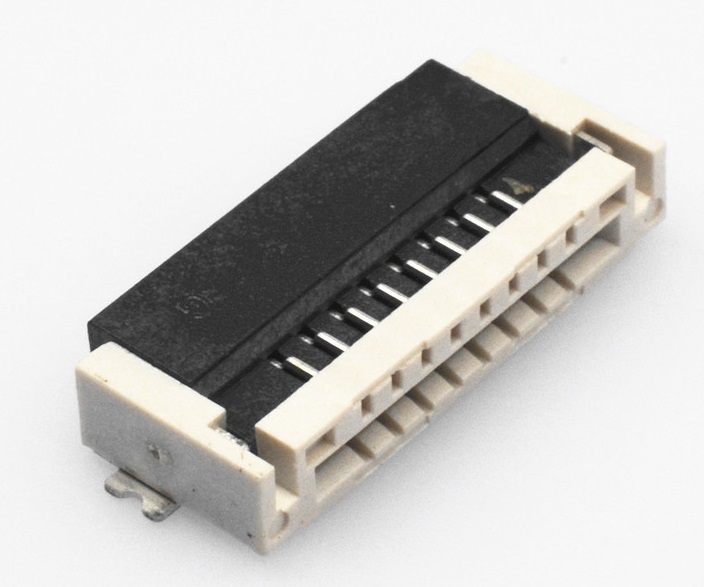

Alinta 1.0mm Pitch Front Contact Rear Flip Type H2.73mm with Larger Latch FPC Connector for Easy Connection

Name: Alinta 10mm Pitch Front Contact Rear Flip Type H273mm with Larger Latch FPC Connector for Easy Connection
Brand: Alinta
Price: 1 USD

China Alinta 1.0mm Pitch Front Contact Rear Flip Type H2.73mm with Larger Latch FPC Connector for Easy Connection wholesale

Brand Name : Alinta

Model Number : ALF-X22 series

Certification : RoHS, Reach

Place of Origin : China

MOQ : 1000 (negotiable)

Payment Terms : T/T

Supply Ability : 30kk

Delivery Time : 2 ~3wks

Packaging Details : Tape & Reel

Price : Depend on quantity

Contact Now

Alinta 1.0mm Pitch Front Contact Rear Flip Type H2.73mm FPC Connector for Easy Connection

Specification

Brand: Alinta

Current Rated: 0.5A AC/DC

Voltage Rated: 50V AC/DC

Working Temperature: -40℃~+85℃

Poles: 4~20P

Application: Computer

Material:

Housing: High Temperature Thermoplastic UL94V-0

Actuator: High Temperature Thermoplastic UL94V-0

Contacts: Phosphor Bronze / Gold flash or matte-tin or tin plated

Fitting Nail: Brass/Matte-tin or tin

Alinta 1.0mm Pitch Front Contact Rear Flip Type H2.73mm with Larger Latch FPC Connector for Easy Connection

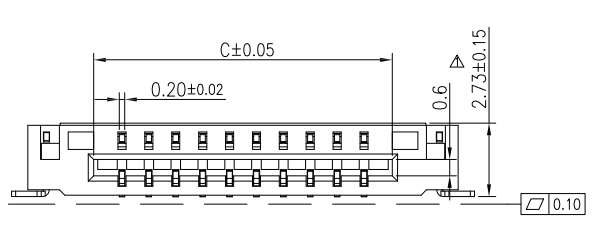

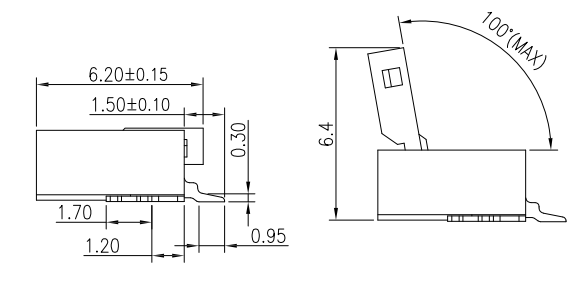

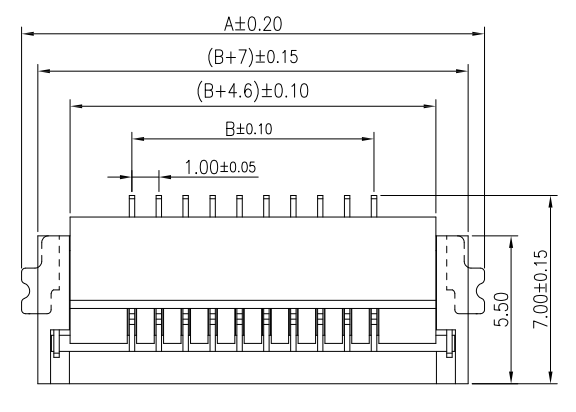

Dimension

Alinta 1.0mm Pitch Front Contact Rear Flip Type H2.73mm with Larger Latch FPC Connector for Easy Connection

Alinta 1.0mm Pitch Front Contact Rear Flip Type H2.73mm with Larger Latch FPC Connector for Easy Connection Images
