Alinta USB 2.0 Plug Copper Alloy Shell Straight Offset Mount DIP Type 3.4H above PCB
What is USB Receptacle?
A USB receptacle is the female connector on a device that is used to receive a USB plug. It's the port where you insert the male end of a USB cable or connector. The USB receptacle is also commonly referred to as a USB port. These ports come in different shapes and sizes depending on the type of USB connector they support, such as USB-A, USB-B, USB-C, or Micro USB. The receptacle facilitates data transfer and power delivery between the device and the connected peripheral.
USB 2.0 Receptacle (USB connector, USB port)
USB 2.0 receptacle is a female connector on a device that is compliant with the USB 2.0 standard. This receptacle is typically designed to accept USB 2.0 Type-A plugs, which are rectangular in shape and commonly used for connecting peripherals like keyboards, mice, printers, and external storage devices to computers and other devices.
USB 2.0 receptacles support data transfer rates of up to 480 Mbps (megabits per second) and provide power to connected devices for charging and operation. They are commonly found on computers, laptops, desktops, and various consumer electronics.
It's important to note that USB 2.0 receptacles are backward compatible with USB 1.1 devices, meaning you can plug USB 1.1 devices into a USB 2.0 receptacle, although data transfer speeds will be limited to the capabilities of the USB 1.1 standard.

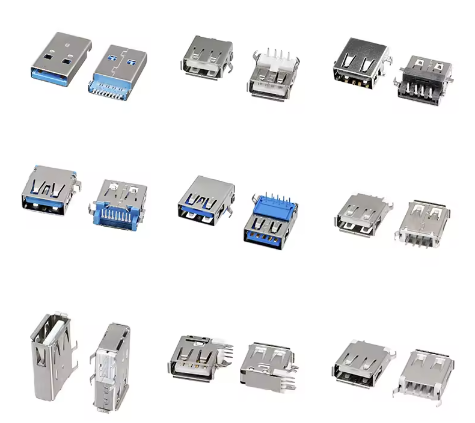

Image of U2-AY0401959-R USB2.0 Plug
Technical Data
| Part Number | U2-AY0401959-R |
| 1. Electrical | |
| Voltage Rating | 30V DC |
| Current Rating | 1.5 Amp |
| Contact Resistance | 30mΩ Max |
| Insulation Resistance | 1000 MΩ |
| Withstand Voltage | 500V AC for one minute at sea level |
| 2. Mechanical | |
| Mating Force | 3.75kgf (max |
| Unmating Force | 1.02kgf (min) |
| Terminal Retention | o.5kgf (min) |
| 3. Environmental | |
| Operating Temperature | -40℃ to 70℃ |
| Salt Spray | 48H at 35℃ with 5%-salt-solution concentration |
| 4. Material | |
| Housing | LCP (Black or White) |
| Contact | Copper Alloy C2680 |
| Shell | Stainless Steel SPCC |
| 5. Plating | |
| Contact | Gold plated in mating area, tin on solder tail |
| Shell | Nickel plating |

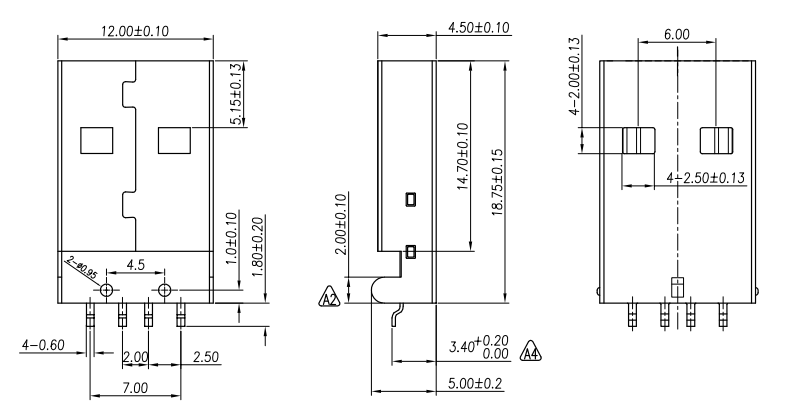

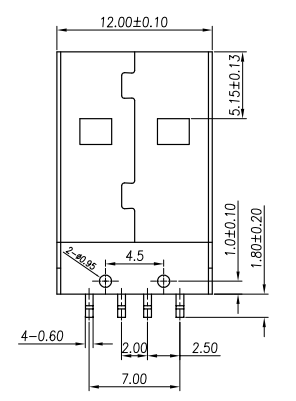

Dimension of U2-AY0401959-R USB 2.0 Plug
Alinta provides our customers with robust, reliable, and long-life-cycle USB 2.0 connectors. With a strong engineering and quality team, we are qualified to offer customized products at competitive prices. Please feel free to share your drawings or ideas at your convenience, let us realize into physical product.
For a dependable and customizable USB connector solution, reach out to Alinta today! Let us assist you in finding the perfect solution for your needs.
