What is Type-C Plug?
Type-C plug refers to the connector used in USB Type-C cables and ports. It is a small, oval-shaped connector characterized by its symmetrical design, meaning it can be inserted into a port regardless of its orientation. This reversible design eliminates the frustration of trying to plug in a cable the wrong way.
The Type-C plug has become increasingly popular due to its versatility and capabilities. It supports various protocols, including USB 3.1, Thunderbolt 3, DisplayPort, and Power Delivery (PD), allowing it to handle data transfer, video output, power delivery, and more through a single connector.
In addition to its reversible design and multifunctionality, Type-C plugs often feature a compact form factor, making them suitable for use in slim devices such as laptops, smartphones, and tablets. They also offer higher power delivery compared to previous USB standards, enabling faster charging for compatible devices.
Overall, the Type-C plug represents a significant advancement in connector technology, offering users a convenient, versatile, and future-proof solution for connecting their devices.
Alinta USB/Type C connector series includes surface mount type and offset type with different heights, installation covers SMT, SMT(front)+DIP(rear), DIP or flag type. Custom colors, long shell or short shells with different overall lengths are available.

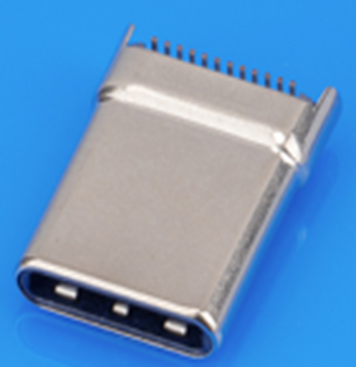

Image of PC-AY2401925-R Type-C Plug
| Material Information | |
| Housing | LCP, UL94V-0 Black |
| Contact | Copper Alloy |
| Shell | Stainless Steel |
| Spring | Stainless Steel |
| Latch | Stainless Steel |
| Plating | |
| Contact | Ni 50u" Min. under plated overall. 1u" Au plated on the functional area of contact |
| Shell | Ni 30u" Min. under plated overall |
Technical Data
| Application | Fitness Equipment, Power Strip, Portable Power Bank... |
| Installation on PCB Type | Verticle DIP | Positions | 24PIN |
| Voltage Rating | 20V | Life Cycle | 10000 |
| Current Rating | 3A | Maing Force (N) | 5N~20N |
| Contact Resistance (mΩ) | ≤40mΩ | Unmating Force (N) | 8N~20N |
| Withstand Voltage (V) | 100V AC/minute | Working Tempreature | -25℃ ～+85℃ |
| Insulation Resistance (MΩ) | ≥100MΩ | Storage Temperature | -40℃ ～+70℃ |
* check drawing for details

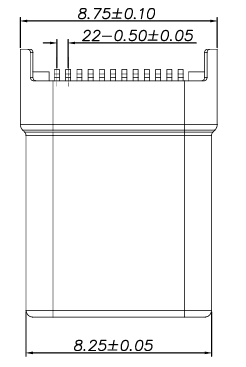

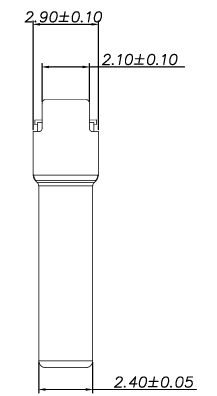

Dimension of PC-AY2401925-R Type C Connector/Plug/Port
* All the data above for reference only, please contact Alinta Electronics to confirm more detailed and latest informaiton.
Alinta provides our customers with robust, reliable, and long-life-cycle USB connectors. With a strong engineering and quality team, we are qualified to offer customized products at competitive prices. Please feel free to share your drawings or ideas at your convenience, let us realize into physical product.
For a dependable and customizable USB connector solution, reach out to Alinta today! Let us assist you in finding the perfect solution for your needs.
