What is Type-C Receptacle?
The Type-C receptacle is a type of USB connector commonly used to connect various devices, with the following features:
Reversible plug design: The Type-C receptacle employs a reversible design, allowing the plug to be inserted in either orientation, making it convenient and easy to use.
High-speed data transfer: The Type-C receptacle supports USB 3.1 or higher versions, providing high-speed data transfer capabilities for quickly transferring files, videos, and other multimedia content.
Support for multiple functions: In addition to data transfer, the Type-C receptacle can also be used for charging, video output, audio transmission, and other functions, making it widely used in smartphones, tablets, laptops, and other devices.
Compact and lightweight: The Type-C receptacle is smaller in size compared to traditional USB connectors, making it better suited for slim device designs and easier to carry and use.
Intelligent features: The Type-C receptacle supports intelligent identification, allowing it to automatically adjust power output, data transfer speed, and other parameters based on the connected device, enhancing user experience.
In summary, the Type-C receptacle offers multiple functions, convenient plug-and-play capabilities with its reversible design, and high-speed data transfer, making it one of the common connectors in modern devices.
Alinta USB/Type C connector series includes surface mount type and offset type with different heights, installation covers SMT, SMT(front)+DIP(rear), DIP or flag type. Custom colors, long shell or short shell with different overall lengths are available.
Image of PC-AY2403891-R Type-C Receptacle
Technical Data
| Part Number | PC-AY2403891-R |
| 1. Electrical | |
| Voltage Rating | 5.0V |
| Current Rating | 5.0A |
| Contact Resistance | VBUS & GND PINS and other pins: 40mΩ/Pin Max. Shield:50mΩ Max |
| Withstand Voltage | 100V AC for one minute at sea level |
| Insulation Resistance | 100MΩ Min |
| - | - |
| 2. Mechanical | check drawing for details |
| Mating Force | 0.5~2.0kgf |
| Unmating Force | 0.8~2.0kgf |
| Peeling Strength | 100N Min |
| Twisting Strength | 0.75Nm |
| Life Cycle | 10000 |
| 3. Environmental | |
| Operating Temperature | -40℃ to 85℃ |
| Salt Spray Test | 24H at 35℃ with 5%-salt-solution concentration |
| Waterproof | IPX5 |
| 4. Material | |
| Housing | High Temperature Resistant Plastic, UL94V-0 |
| Contact | Copper Alloy |
| EMI Plate | Stainless Steel |
| Front Plate | Stainless Steel |
| Mid Plate | Stainless Steel |
| 5. Plating | |
| Contact | Ni 50u" Min. under plated overall. Au plated on the functional area of contact |
| Shell | Ni 30u" Min. under plated overall |
Martket and Applicaton:
Portable Power Bank, Fitness Equipment, Power Strip

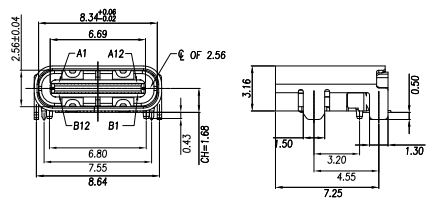

Dimension of PC-AY2403891-R Type C Connectore/Receptacle/Port
* All the data above for reference only, please contact Alinta Electronics to confirm more detailed and latest informaiton.
Alinta provides our customers with robust, reliable, and long-life-cycle USB connectors. With a strong engineering and quality team, we are qualified to offer customized products at competitive prices. Please feel free to share your drawings or ideas at your convenience, let us realize into physical product.
For a dependable and customizable USB connector solution, reach out to Alinta today! Let us assist you in finding the perfect solution for your needs.
